FLANGES

Stainless Steel: ASTM A182 F304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/904Letc.

Carbon Steel: ASTMA105/A694F42/46/52/56/60/65/70/A350LF3/A350LF2,etc.

Alloy Steel: ASTMA182 F1/F5/F9/F11/F22/F91 etc.

Others: Monel, Nickel, lnconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum,Bismuth.Aluminium,High Speed Steel,Zinc,Lead,etc.

Types: Weldneck, Slipon, Blind, Socket Weld, Lap Joint, Spectacles, Ring Joint, Orifcae,Long Weldneck,DeckFlange,RTJ,Flange

Size: 1/2"NB TO 24"NB.

Class: 150#,300#,400#,600#,900#,1500# & 2500#.

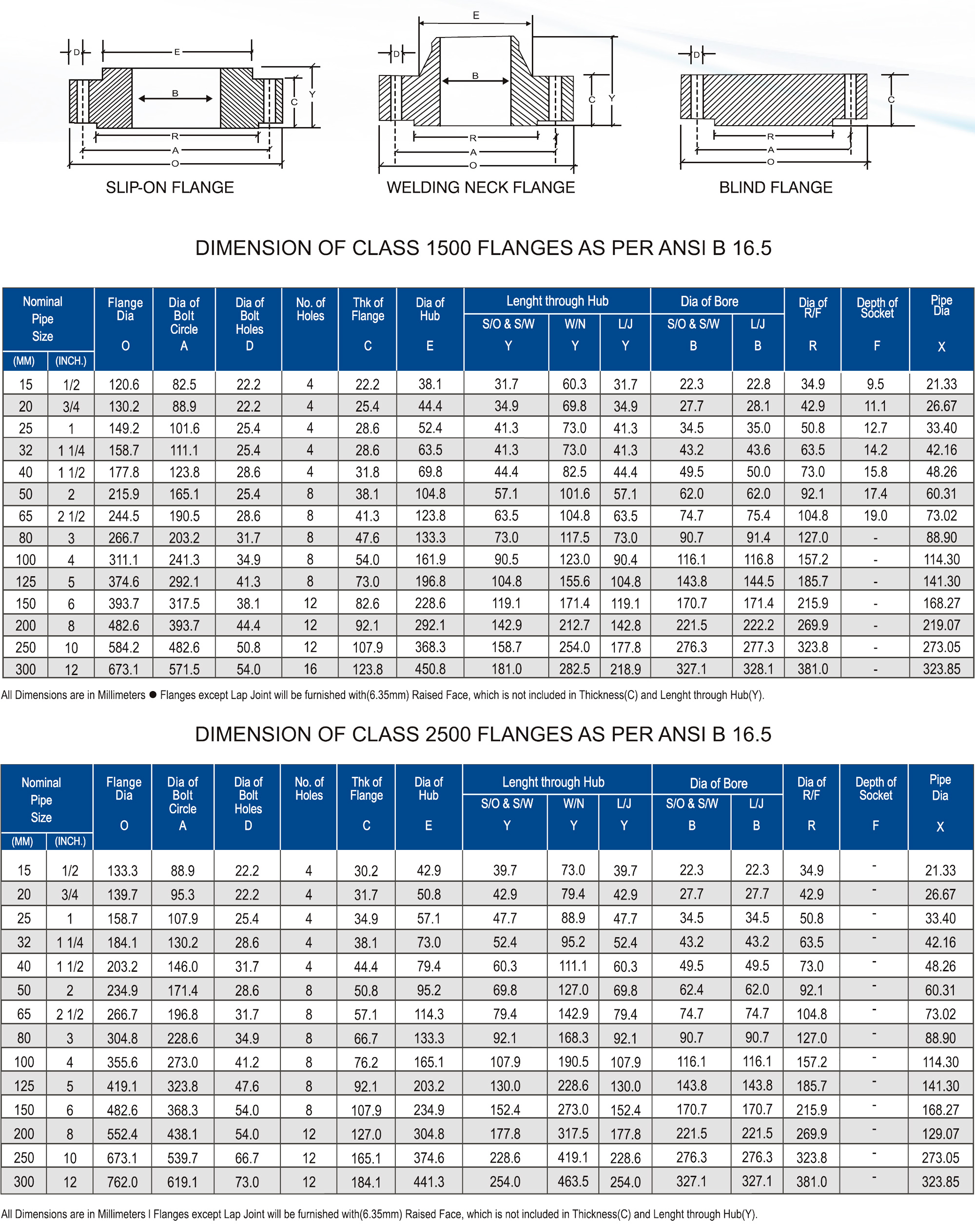

Dimensions Of Forged Flanges ANSI B 16.5

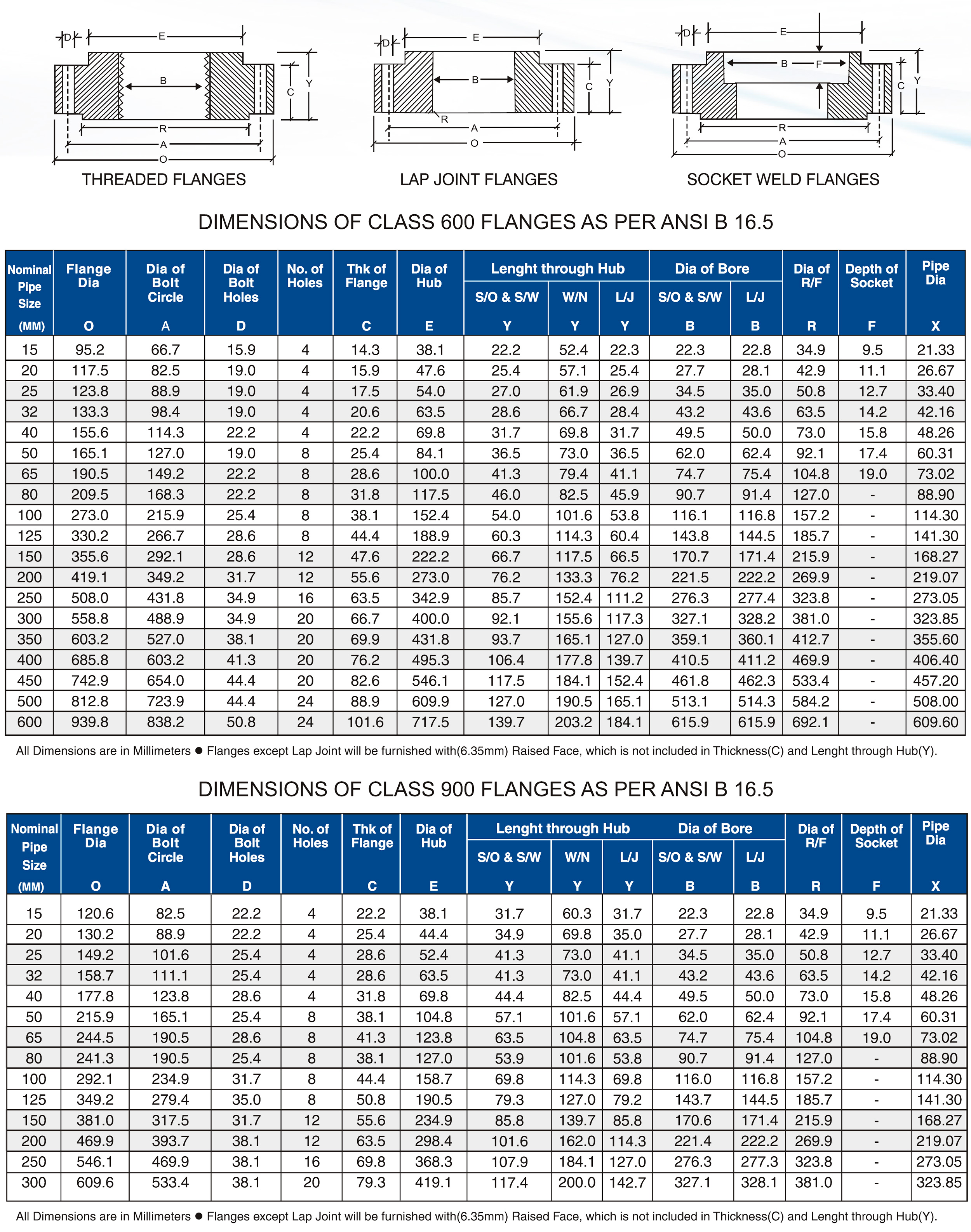

Dimensions Of Forged Flanges ANSI B 16.5

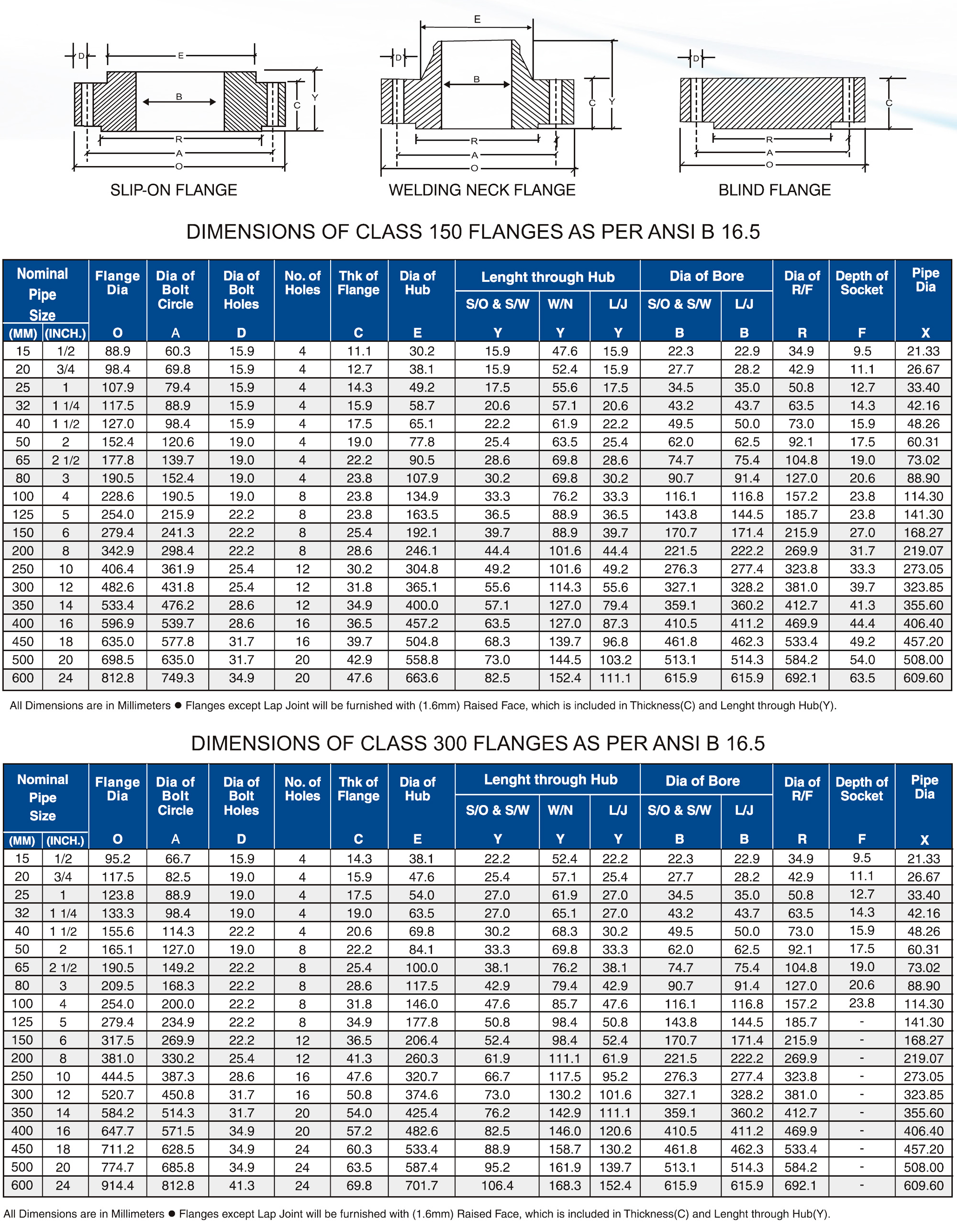

Dimension Of Forged Flanges As Per ANSI B 16.5
